[GCP]HTTP(S) Load Balancing

HTTP(S) 에 대한 global Load Balancer 이다.

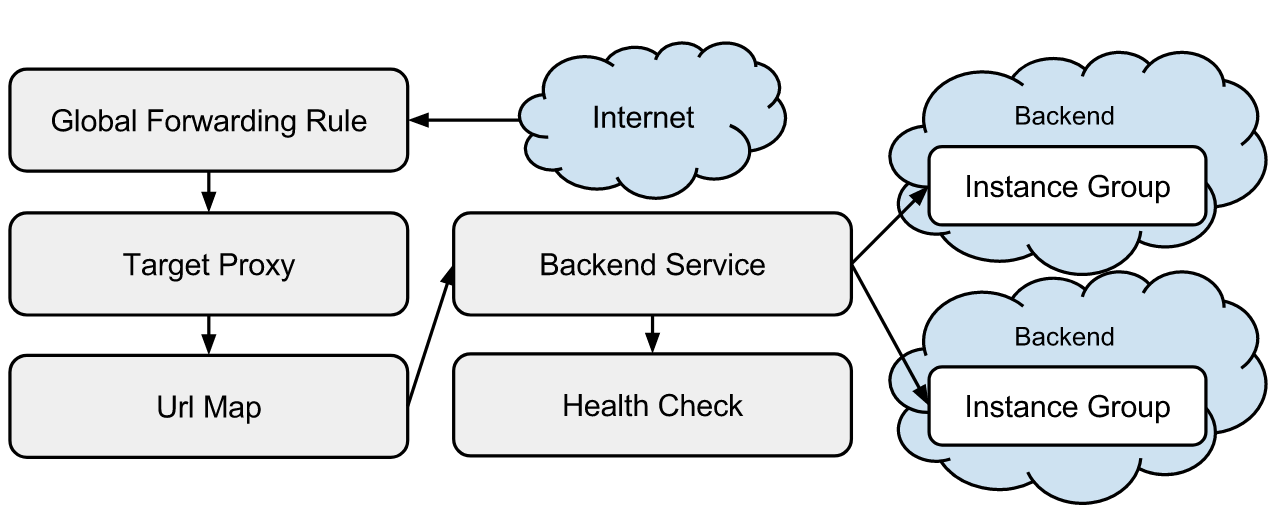

1. forwarding rule 은 다이렉트로 request 를 target proxy 로 전달한다.

2. target proxy 는 url map 을 통해서 적절한 backend service 로 라우팅 해준다.

3. backend service 는 request 를 서버 용량, 상태에 따라서 적절한 backend instance 로 전달한다. 각각의 backend instance는 health check 를 사용한다.



출처 : https://cloud.google.com/load-balancing/docs/https/



LoadBalancing 비교

Internal or external	Load balancer type	Regional or global	Supported network  tiers	Proxy or pass-through	Traffic type
Internal	Internal TCP/UDP	Regional	Premium only	Pass-through	TCP or UDP
	Internal HTTP(S)			Proxy	HTTP or HTTPS
External	Network TCP/UDP		Premium or Standard	Pass-through	TCP or UDP
	TCP Proxy	Global in Premium Tier		Proxy	TCP
	SSL Proxy			Proxy	SSL
	HTTP(S)			Proxy	HTTP or HTTPS

(출처 : https://cloud.google.com/load-balancing/docs/load-balancing-overview?hl=en)
